0.1-100℃/min Crystallinity Thermal Analyzer RT ～ 600℃ 24 bit color ChP0981

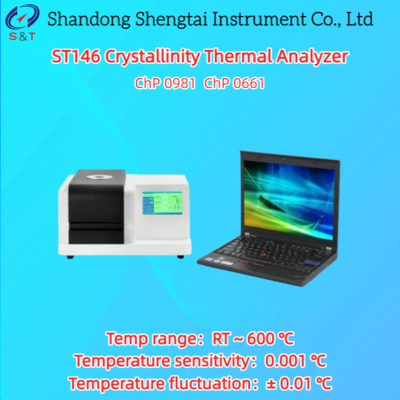

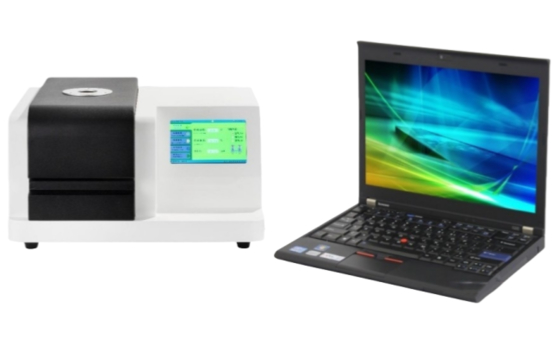

ST146 Crystallinity Thermal Analyzer

The ST146 Crystallinity Thermal Analyzer is designed and manufactured according to the new version of the 2025 Chinese Pharmacopoeia General Rules 0981 Crystallinity Inspection Method Third Method Differential Scanning Calorimetry and General Rules 0661 Thermal Analysis Method Second Method Differential Scanning Calorimetry. The Crystallinity Thermal Analyzer has a touch screen design and can perform tests such as glass transition temperature, phase transition, melting and enthalpy, product stability, curing, specific heat, and oxidation induction period.

Technical parameters and characteristics:

● Temp range: RT~600 ℃

● Temp sensitivity: 0.001 ℃

● Temp fluctuation: ± 0.01 ℃

● Temp repeatability: ± 0.1 ℃

● Heating rate: 0.1-100 ℃/min

● Data scanning: heating scan, cooling scan, constant temperature scan

● Temperature control mode: PID accurate control (automatic program control); The lower computer interface can set and define the PID parameter values by itself to meet different environments and power heating; Initial heating power can be customized;

● DSC range: 0 ～ ± 600mW

● DSC resolution: 0.01uW

● DSC sensitivity: 0.001mW

● Working power supply: AC220V/50Hz or customized

● Atmosphere control gases: nitrogen, oxygen (instrument automatically switches)

● Gas flow rate: 0-300mL/min;

● Display mode: 24 bit color, 7-inch LCD touch screen display

● parameter standard: equipped with reference material (TIN), the user can correct the temperature by himself

● software: with specific heat capacity test function, including specific heat capacity test standard sample; The software can set six experimental parameters at the same time;

● The software has automatic analysis function, the data can be generated in EXECL format, and the experiment can be saved in PDF report

● Industrial grade 7-inch touch screen with rich display information.

● New metal furnace structure, better baseline and higher precision. Indirect conduction mode is adopted for heating, which has high uniformity and stability, reduces pulse radiation and is superior to the traditional heating mode.
● USB communication interface, with strong versatility, reliable communication without interruption, and support for self recovery connection function.
★ Data extension: account layering and audit tracking function (optional)

Note: Gas self provided

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
