Adhesive Tape Holding Viscosity Constant Temp Tester RT ～ 200℃ ±0.3℃ ASTM D3654

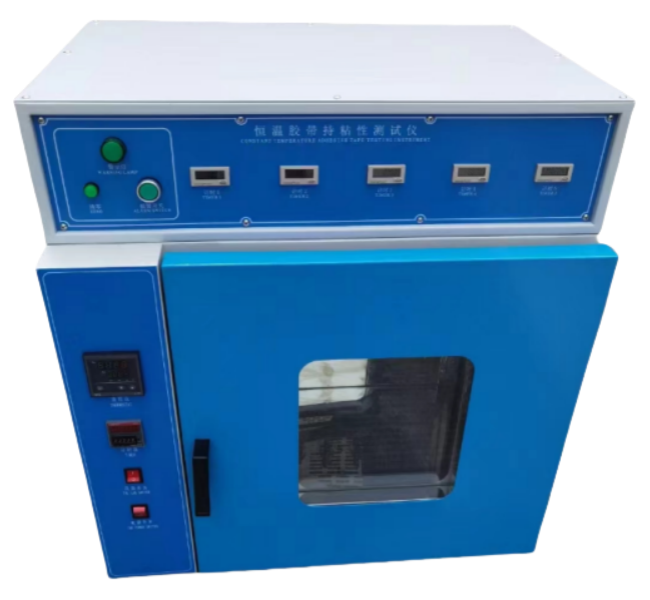

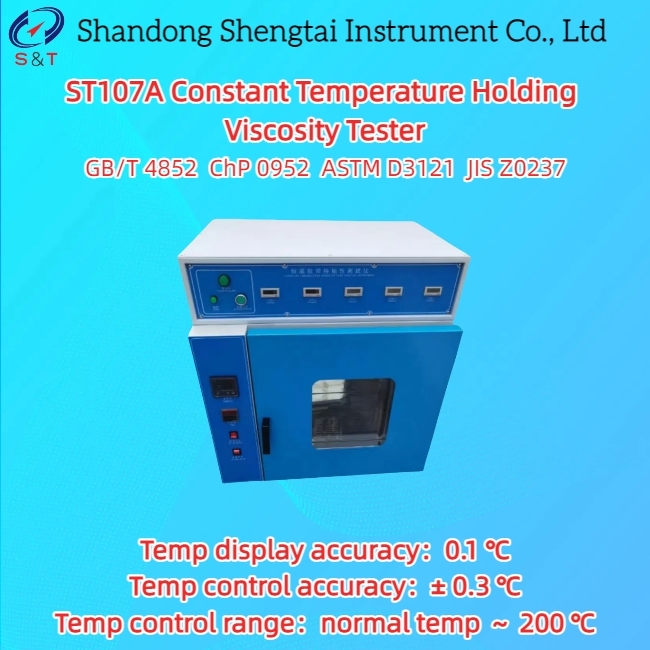

ST107A Constant Temperature Holding Viscosity Tester

The ST107A Constant Temperature Holding Adhesive Tester is designed and manufactured strictly in accordance with YY/T 0148-2006 "General Requirements for Medical Adhesive Tape" and GB/T4851-2014 "Test Methods for Holding Adhesive Tape", and is suitable for holding adhesive testing of medical adhesive tapes and other products.
Working Principle:
Hang the test board with the sample attached vertically on the test stand, hang a weight of the specified weight at the lower end, and use the displacement of the sample after hanging at a certain temperature for a period of time, or the time for the sample to completely detach, to characterize the ability of the adhesive tape to resist pulling off. Suitable for conducting adhesion testing on products such as pressure-sensitive adhesive tapes.
Instrument structure:
It mainly consists of a timing mechanism, a test board, a loading board, weights, a frame, and standard pressure rollers.
Product Features:
Imported proximity switch, wear-resistant and impact resistant, high sensitivity, and longer service life.
Manufacturing material:
Internal SUS # 304 stainless steel plate, external treated with advanced baking paint.
All built-in components are made of high-temperature resistant materials.

Instrument parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

packing list
