ST-6 Sealing Tester Vacuum water bath negative pressure method ASTM D3078

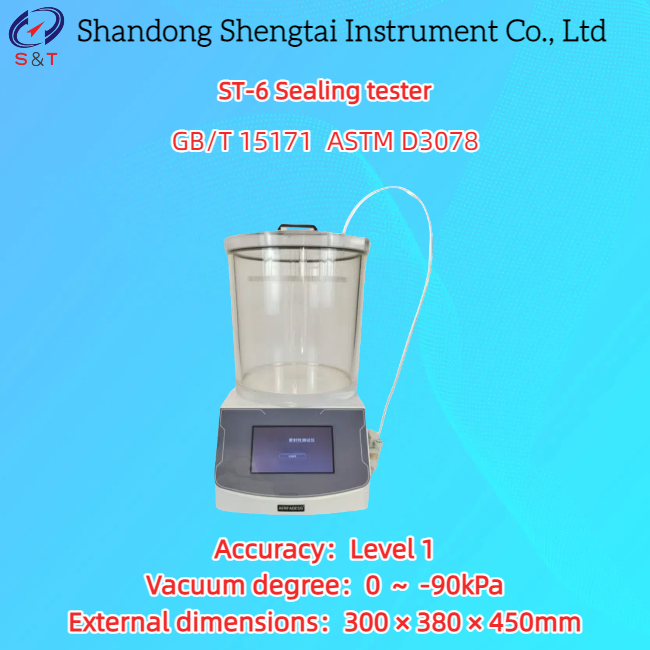

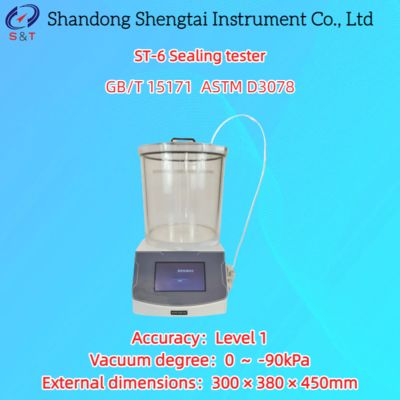

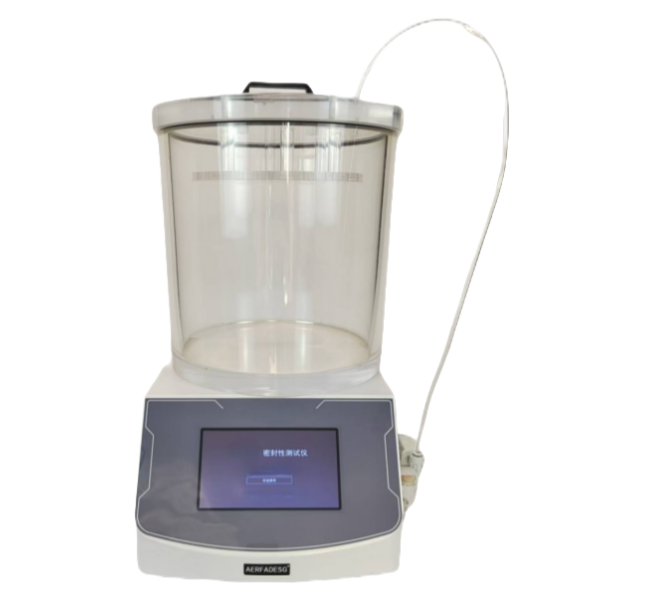

ST-6 Sealing tester (no external gas source required)

The ST-6 sealing tester is suitable for product sealing testing. Through testing, it can effectively compare and evaluate the sealing process and sealing performance of flexible packaging. It is an ideal testing instrument for industries such as food, plastic flexible packaging, wet wipes, pharmaceuticals, and daily chemical products

Product Application

Soft packaging bags, hard packaging bottles, medicine bottles, metal cans, bubble wrap packaging, composite packaging

Performance characteristics

● Adopting a built-in air source unit, no external air source is required, plug in and use immediately

● The system adopts microcomputer control, with fully automated operations including pumping, holding, replenishing, timing, backblowing, and printing

● The device is equipped with a LCD display screen and comes with a micro printer. It supports data preset and power-off memory to ensure the accuracy of test data

● Support Chinese or English systems

● Print and output test data to meet different customer needs.

● Equipped with 3-level permission function and historical data query function

Testing Principles

By evacuating the vacuum chamber, the sample immersed in water is subjected to an internal and external pressure difference, and the gas leakage inside the sample is observed to determine its sealing performance; By evacuating the vacuum chamber to create an internal and external pressure difference in the sample, observing the expansion of the sample and the recovery of its shape after releasing the vacuum, the sealing performance of the sample can be determined

Application area:

Basic application:

● Used for overall sealing test of glass bottles, tubes, cans, and boxes

● Used for overall sealing test of plastic bottles, tubes, cans, and boxes

● Used for overall sealing test of metal material bottles, tubes, cans, and boxes

● Sealing test for paper plastic composite bags and box materials

Extended application:

● Used for pen core sealing test

● Sealing test for electronic components

● Sealing test applicable to medical devices

Technical index:

Power supply: AC 220V 50Hz

Execution standards: GB/T 15171,ASTM D3078

Vacuum degree: 0～-90kPa

Accuracy: Level 1

Effective size of vacuum chamber: Φ 270 × 210 mm (standard)

External dimensions: 300 × 380 × 450mm

Net weight: 30KG

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
