Intelligent Closed Flash Point Tester RT+5℃ ～ 300℃ Electric Ignition PT100 Platinum Resistance ASTM D93

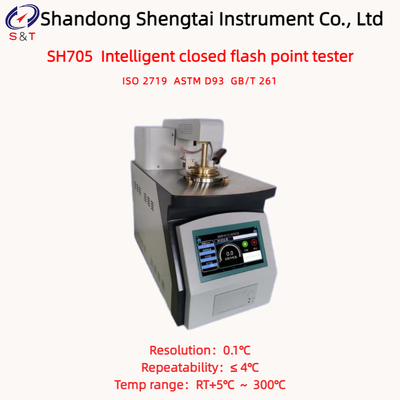

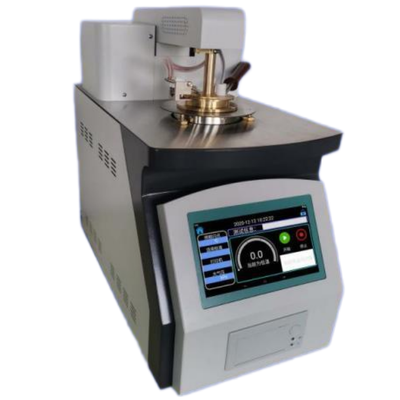

SH705 Intelligent closed flash point tester

Standard: ISO 2719 ASTM D93 GB/T 261

SH705 full-automatic closed-mouth flash point tester adopts the combination of microcomputer technology and Android system, with large screen LCD display. The instrument is heated up, automatically raised and lowered, automatically ignited, automatically displayed, automatically locked flash point value, and automatically printed results according to the standard method. After the test, it can automatically cool down and realize the full automation of the working process. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO 2719, ASTM D93, GB/T261-2021 standards.

High definition color touch screen, Android operating system and Internet plus technology are used to make the display content more colorful. You can surf the Internet, download documents, browse electronic user manuals, etc., improve the human-computer interaction ability, and make the operation more convenient. The product has added local control, and the data storage capacity reaches 1G. The electrical control and mechanical structure adopt the modular design of new technology, which makes the product durable, solid, safe and reliable in operation. The product appearance adopts industrial design to make the product have modern aesthetic feeling.

Features

● 7-inch color touch screen, human-computer dialogue interface in full Chinese, keyboard without logo

● Android operating system, internet access, download, LAN control

● It can connect mobile phone software for remote operation control, real-time synchronization and data export

● Automatically detect the atmospheric pressure and correct the influence of atmospheric pressure on the test and calculate the correction value.

● Detection method: differential detection of detection loop

● Cover opening, ignition, detection and printing data are automatically completed, and the test arm automatically rises and falls.

● Electronic ignition, forced air cooling, automatic ignition without air source.

● Printer: equipped with micro printer

● Historical data: a single machine can store 1000 pieces of data

● Air pressure detection device: it is equipped with air pressure detection device to automatically correct atmospheric pressure.

● Automatic ignition without air source improves the safety of the test.

● Clock display (power down hold)

● Excel form can be exported via mobile phone, stored in computer for a long time, and data can be saved indefinitely

Technical parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
