Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950

  • Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950
  • Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950
Lugar de origem China
Marca Shandong Shengtai Instrument Co., Ltd.
Certificação SH/T 0220 ISO 9950 JB/T 7951
Número do modelo SH0220
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano
Detalhes do produto
Faixa de temperatura TA ~ 900°C Dimensões da cavidade do forno não menos que Φ25*200mm
Tipo de sonda Sonda de prata Display de curva Gráfico mostrando a temperatura ao longo do tempo
Contenedor médio 300ml Fonte de alimentação funcionando AC 220V±10% 50Hz
Destacar

Quenching oil cooling analyzer

,

Transformer oil testing equipment with probe

,

ISO 9950 quenching oil analyzer
Deixe um recado
Descrição de produto

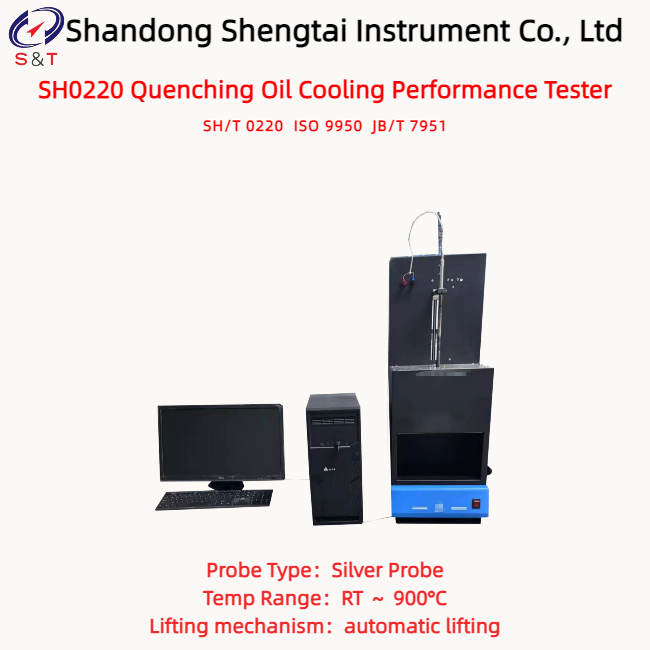

SH0220 Quenching Oil Cooling Performance Tester

Standard: SH/T 0220 ISO 9950 JB/T 7951

The SH0220 Quenching Oil Cooling Performance Tester is strictly designed and manufactured in accordance with the SH/T 0220 standard for determining the cooling performance of heat treatment oils. It is used to measure the maximum cooling rate and cooling time of quenching oils and other heat treatment oils. It is suitable for testing the cooling performance of water-based and oil-based cooling media under laboratory standard conditions, including the maximum cooling rate, the temperature at which the maximum cooling rate occurs, the cooling rate at 300°C, the time required to cool to 600°C, the time required to cool to 400°C, and the time required to cool to 200°C.

Main technical specifications, parameters, and performance features:

Heating method The furnace body heating is PID self-tuning, automatically adjusted
Temp Range RT ～ 900°C
Furnace cavity dimensions no less than Φ25*200mm
Probe Type Silver Probe
Curve Display Graph showing temperature over time
Medium container 300ml
Lifting mechanism automatic lifting
Printing function Automatically prints temperature-time curves and cooling characteristics
Working power supply AC 220V±10% 50Hz
Power consumption 2000W
Packaging dimensions 480*430*590mm
Weight 35kg

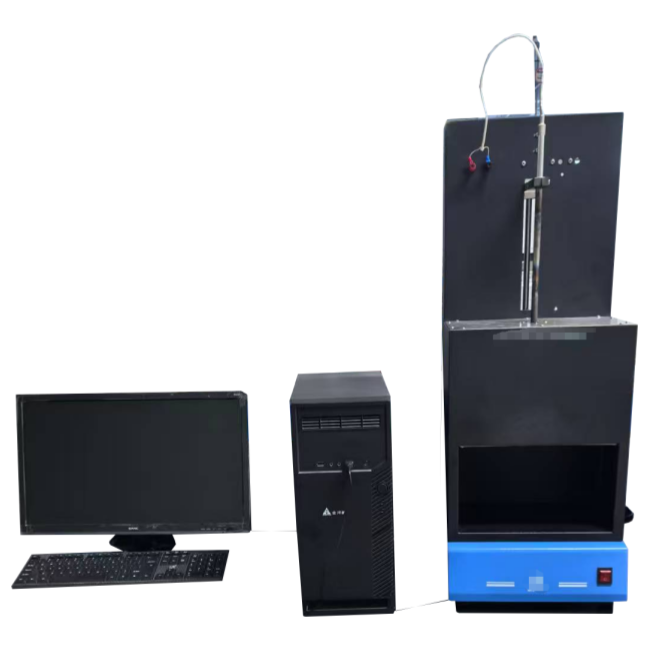

Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950 0

Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no separate notice will be provided.





Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.



Package list

Number Name Quantity Unit Note
1 Host 1 Set
2 Silver probe 1 Piece
3 Media container 1 Piece
4 Power cord 1 Strip
5 User Manual 1 Copy
6 Packing List 1 Copy
7 Certificate of Conformity Warranty Card 1 Copy

Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950 1
