ASTM D482 Ash Tester For Quenching Oil Heating RT ～ 1000℃ Thermocouple Temp Control

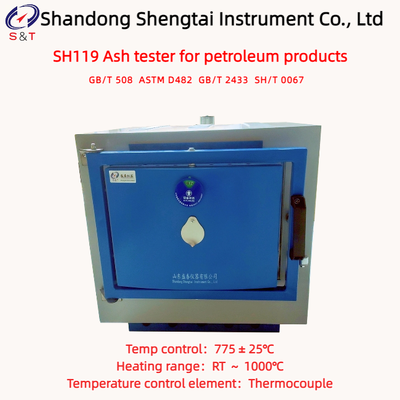

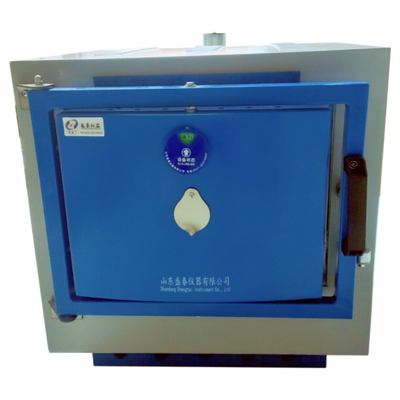

SH119 Ash tester for petroleum products

Standard: GB/T 508 ASTM D482 GB/T 2433 SH/T 0067

The SH119 Petroleum Product Ash Determination Instrument is designed and manufactured in accordance with the standards GB/T 508 "Determination of Ash in Petroleum Products," ASTM D482, GB/T 2433 "Determination of Sulfate Ash in Additives and Lubricating Oils Containing Additives," and SH/T 0067 "Determination of Ash Content in Engine Coolants and Rust Inhibitors." It is used to measure the ash content in petroleum products and the sulfate ash in lubricating greases. The instrument is also suitable for determining the ash content in petroleum products containing ash-forming additives (including certain phosphorus-containing additive compounds), as well as in leaded lubricating oils and used engine crankcase oil. The instrument employs a new ceramic furnace as the heating element, making it suitable for detecting sulfate ash in lubricating oils containing additives and additive concentrates in blended lubricating oils.

Performance Features:

● The shell is made of steel plate by folding and welding, with electrostatic spraying on the surface. The heating element is made of high-quality silicon carbon rod, and the insulation material is made of high-quality aluminum silicate fiber.

● The furnace is made of ceramic fiber, which has the characteristics of fast heating speed (it can rise to 1000℃ in about 30 minutes) and good heat preservation effect (it is not hot to touch the shell by hand when it reaches 1000℃).

● The control section features microcomputer PID control functionality and can be configured with smart program instruments as per user requirements. It supports segmented heating and insulation settings, along with over-temperature alarm and timer functions.

Technical parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Package list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
