2 Holes Auto Low-Temp Density And Viscosity Analyzer For Diesel Oil ASTM D1298

  • 2 Holes Auto Low-Temp Density And Viscosity Analyzer For Diesel Oil ASTM D1298
  • 2 Holes Auto Low-Temp Density And Viscosity Analyzer For Diesel Oil ASTM D1298
Lugar de origem China
Marca Shandong Shengtai Instrument Co., Ltd
Certificação GB/T 265 GB/T 1884 ASTM D445 ASTM D1298 ISO3675
Número do modelo SH112EM
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano
Detalhes do produto
Ponto de controlo da temperatura Ajustável de 0°C a 100°C Precisão do controle de temperatura ± 0,1 ℃
Modo de exibição Visor digital Refrigeração em banho frio Garrafa Dewar a vácuo de camada dupla personalizada
Fonte de energia CA 220V ±10% 50Hz ±5% Temperatura Ambiente 5°C ️ 40°C
Destacar

2 holes diesel oil analyzer

,

low temp viscosity analyzer

,

ASTM D1298 density tester
Deixe um recado
Descrição de produto

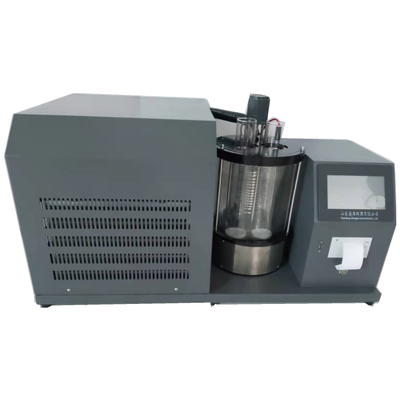

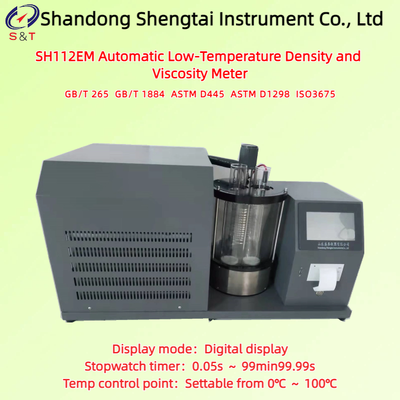

SH112EM Automatic Low-Temperature Density and Viscosity Meter

Standard: GB/T 265 GB/T 1884 ASTM D445 ASTM D1298 ISO3675

The SH112EM Low-Temperature Petroleum Density and Viscosity Meter complies with the national standards GB/T 265 "Methods for Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products" and GB/T 1884 "Laboratory Methods for Determination of Density of Crude Oil and Liquid Petroleum Products (Hydrometer Method)". It can simultaneously accommodate 2 viscometers or 2 density tubes for experiments.

Main features:

● The constant temperature bath is a low-temperature double-layer Dewar flask, with uniform temperature distribution inside and excellent temperature control.

● This instrument employs a precision digital temperature controller to regulate the temperature within the bath, utilizing a solid-state relay (SSR) as the actuating component. It features accurate temperature control, contactless operation, noise-free performance, spark-free operation, rapid response, and long service life.

● The capillary gauge adopts a three-point vertical design, offering flexible and convenient operation with reliable clamping.

● Standard Configuration: Mini Printer, Automatic Calculation, Automatic Printing

● Configure a dedicated density meter structural support

● Equipped with a dedicated viscosity tube clamp for viscosity measurement.

Key technical specifications:

● Features a large color LCD screen with Chinese display, unmarked buttons, and precise PT100 platinum resistance temperature measurement. Supports arbitrary setting from 0 to 100°C. Automatically calculates viscosity values.

Temp control point Settable from 0℃ ～ 100℃
Temp control accuracy ±0.1℃
Display mode Digital display
Cold Bath Refrigeration Customized Double-Layer Vacuum Dewar Bottle
Stopwatch timer 0.05s ～ 99min99.99s
Heating power 1800W
Density test tube capacity 500ml
Heating power 750W
Temp controller temp control range 0℃ ～ 100℃ (with cooling). Continuously adjustable
Temp control accuracy ±0.1℃
Temp sensor Industrial platinum resistance thermometer with a Pt100 designation
Number of measured holes 2 holes
10 sets of density tubes Specification: 600-1010 kg/m³, Graduation value: 0.5, Total length: 300mm
Viscosity measurement range 0.4-30,000 mm²/s (select different viscosity tubes)
Power Supply AC 220V ±10% 50Hz ±5%
Ambient temperature 5℃ ～ 40℃
Ambient humidity <85%
Dimensions 190*380*280mm
Weight 15Kg

2 Holes Auto Low-Temp Density And Viscosity Analyzer For Diesel Oil ASTM D1298 0

Consumables to be provided by the customer: water or alcohol.

According to national standards, the following reagents must be used to clean the viscosity tube before the experiment: solvent oil or petroleum.

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be minor changes, and no separate notice will be provided.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

2 Holes Auto Low-Temp Density And Viscosity Analyzer For Diesel Oil ASTM D1298 1
