Transformer Oil Auto Carbon Residue Testing Machine RT ～ 500℃ Micro Mode ASTM D4530

  • Transformer Oil Auto Carbon Residue Testing Machine RT ～ 500℃ Micro Mode ASTM D4530
  • Transformer Oil Auto Carbon Residue Testing Machine RT ～ 500℃ Micro Mode ASTM D4530
Lugar de origem China
Marca Shandong Shengtai Instrument Co., Ltd.
Certificação GB/T 17144, ASTM D4530, ISO 10370, GB/T 268
Número do modelo SH109
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano
Detalhes do produto
Faixa de medição 0,10% (m/m) ~ 30,0% (m/m) Faixa de temperatura TR ~ 500 ℃
Precisão de temperatura constante 500°C±2,0°C Tempo de temperatura constante 15 minutos
tamanho da câmara de combustão Φ85mm * 105mm Frasco de coleta de resíduos líquidos 200ML
Destacar

Transformer oil carbon residue tester

,

Micro mode lube oil testing equipment

,

ASTM D4530 oil testing machine
Deixe um recado
Descrição de produto

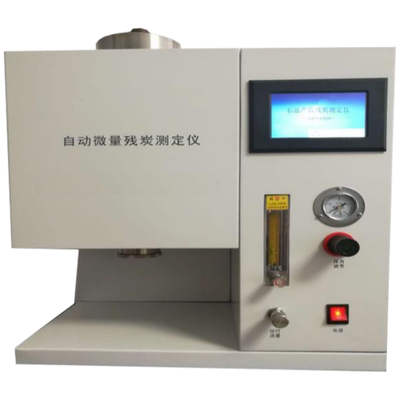

SH109 Automatic carbon residue tester

The SH109 fully automatic residual carbon analyzer is designed and manufactured in accordance with the requirements of GB/T 17144-2021 "Determination of residual carbon in petroleum products (micro method)", "ASTM D4530" and "ISO 10370:1993" standards. It has the characteristics of beautiful appearance and easy operation. The test results are consistent with those of GB/T 268 (Koch method) and are also suitable for detecting petroleum products composed of distillate oil with residual carbon values below 0.10 (m/m).

Petroleum residual carbon: The residue formed by the gas decomposition products emitted from an oil sample after heating, evaporation, and cracking. Expressed in terms of quality score

Principle: Place the weighed sample into a sample tube and heat it up to 500 ℃ in an inert gas (nitrogen) atmosphere according to the prescribed temperature program. The volatile substances generated during the reaction process are carried away by nitrogen, and the carbonaceous residue left behind is reported as a percentage of the original sample to determine the trace residual carbon value.

Performance Features

● Adopt 5 color LCD touch screen automatic calculation, optional printing function, main board with communication interface.

● The whole heating process program control, automatic control of heating rate, automatic control of the set temperature, stable temperature control.

● Display instrument is in a state of "purge", "temperature rise" and "constant temperature"

● Adopt embedded operating system, temperature rise, flow automatic control, real-time display experiment process

● Can edit the input sample tube, sample quality, automatic calculation of carbon residue value.

● Can store hundreds of groups of historical data, convenient query. Historical data can be queried by date

Main technical parameters

Measurement range 0.10% (m/m) ～ 30.0% (m/m)
Temp range RT ～ 500℃
Constant temp accuracy 500℃± 2.0℃
Constant temp time 15min
Measurement accuracy ± 0.5℃
Gas consumption A standard nitrogen cylinder with a pressure of 14700kPa (150kg/cm²)
Set time error <0.1s
Number of experimental wells 12 wells for 3ml and 4ml test tubes; A 10ml test tube has 6 wells
Pressure regulation range 0kPa (0kg/cm²) ～ 392kPa (4kg/cm²)
Combustion chamber size Φ85mm * 105mm
Waste liquid collection bottle 200ml
Heater power 1000W
Dimensions 420 * 420 * 470mm
Instrument weight 24kg
Packaging size 650 * 550 * 700 mm
Packaging weight 45kg
Flow regulation range 100ml/min ～ 1000ml/min; Automatic switching between 150ml/min and 600ml/min
Working power supply AC220V ± 10% 50Hz

Transformer Oil Auto Carbon Residue Testing Machine RT ～ 500℃ Micro Mode ASTM D4530 0

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Packing list

S/N Name Unit Quantity Remarks
1 Micro carbon residue tester Set 1
2 Small sample test tube Piece 10
3 Large sample test tube Piece 10
4 Sample tube rack Piece 1
5 Power cable Piece 1
6 Instructions Copy 1
7 Certificate warranty card Copy 1



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Transformer Oil Auto Carbon Residue Testing Machine RT ～ 500℃ Micro Mode ASTM D4530 1
