ASTM D93 Automatic Essence Rapid Equilibrium Closed Flash Point Meter Sample 2ml - 10ml

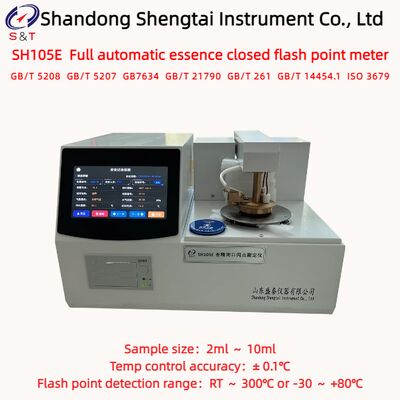

  • ASTM D93 Automatic Essence Rapid Equilibrium Closed Flash Point Meter Sample 2ml - 10ml
  • ASTM D93 Automatic Essence Rapid Equilibrium Closed Flash Point Meter Sample 2ml - 10ml
Lugar de origem China
Marca Shandong Shengtai Instrument Co., Ltd.
Certificação GB/T 5208 GB/T 5207 GB7634 GB/T 21790 GB/T 261 GB/T 14454.1 ISO 3679 ASTM D93
Número do modelo SH105E
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano
Detalhes do produto
Modo de exibição Tela colorida sensível ao toque de 7 polegadas Escala da detecção do ponto de inflamação TA ~ 300°C ou -30 ~ +80°C
Tamanho da amostra 2ml ~ 10ml Precisão do controle de temperatura ± 0,1°C
Tensão de alimentação AC220V ± 10% 50Hz Poder inteiro não superior a 300W
Destacar

ASTM D93 flash point meter

,

automatic closed flash point tester

,

lube oil flash point analyzer
Deixe um recado
Descrição de produto

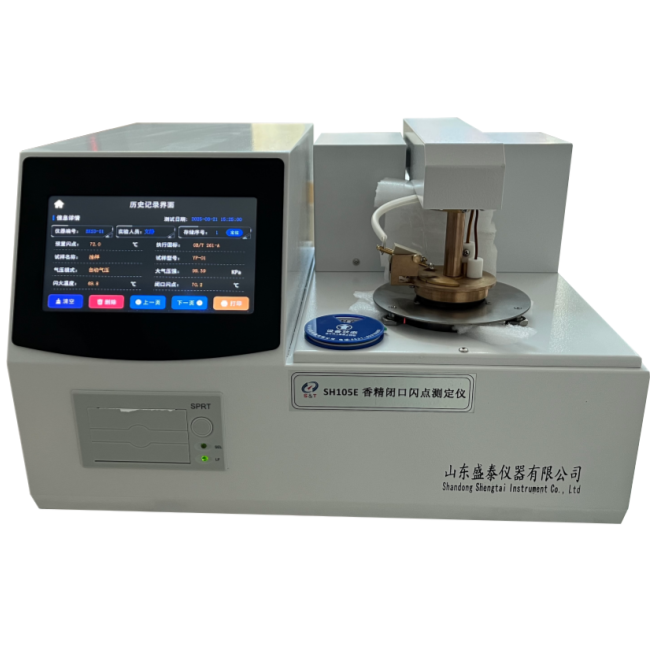

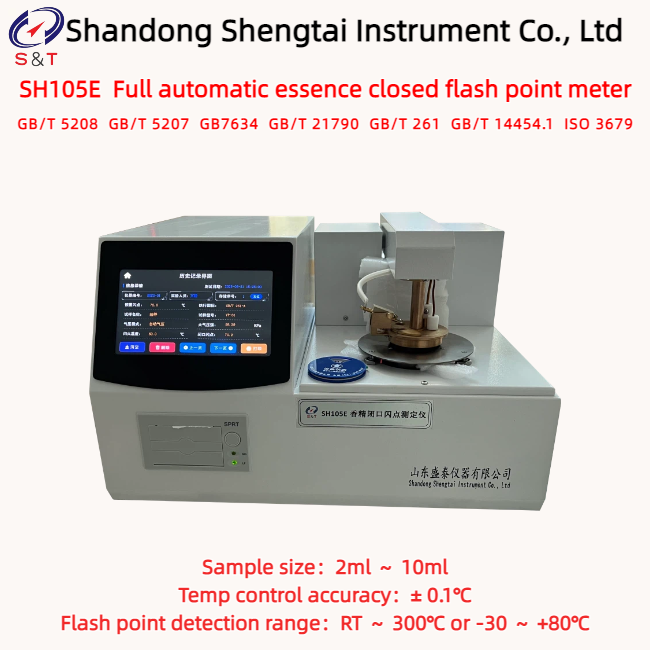

SH105E Full automatic essence closed flash point meter

The SH105E full-automatic essence closed flash point tester is designed and manufactured in accordance with the requirements of the standard GB/T 261, GB/T 14454.1 essence flash point or GB/T 5208 Determination of Flash Point Rapid Balance Closed Cup Method. This instrument also meets the requirements of ISO 3679 standard. pensky-martens

This instrument is based on advanced electronic temperature control instruments and equipped with appropriate interface circuits to achieve automation of temperature control. It has functions such as automatic switching of heating power and automatic temperature control. This instrument is simple in operation, reasonable in structure, accurate in detection, stable in performance, and intuitive in display. It is an ideal substitute for imported instruments, and can meet the requirements of petroleum, chemical industry, coating, paint, essence, spice commodity inspection and scientific research institutions for fast closed flash point testing of petroleum products.

This instrument is particularly suitable for testing the closed cup flash point of various paints, coatings, adhesives, solvents, petroleum and related products within the range of room temperature to+300℃ or -30℃ ～ 100℃.

Main technical indicators and parameters

● Standard micro printer with automatic measurement and thermal printing

Display mode 7-inch touch color screen display
Flash point detection range RT ～ 300℃ or -30 ～ +80℃
Sample size 2ml ～ 10ml
Measurement precision

The difference between two experimental results is less than 2℃ (for the same operator);

The difference between two experimental results is less than 3℃ (for different operators);
Temp control accuracy ± 0.1℃
Ignition device electronic ignition point
Opening method automatic opening
Cooling method Semiconductor internal cooling and external compressor cooling cycle
Data storage can store 200 sets of historical data
Compliant with standards Compliant with Chinese standards
Power supply voltage AC220V ± 10% 50Hz
Whole power not exceeding 300W
Environmental temp 5℃ ～ 30℃
Relative humidity 30 ～ 80%
Size 370 * 280 * 380mm
Weight 15KG
Circulating bath size 450 * 480 * 580mm
Weight 28kg (optional)

ASTM D93 Automatic Essence Rapid Equilibrium Closed Flash Point Meter Sample 2ml - 10ml 0

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Automatic closed flash point meter 1 Set
2 Oil cup 1 Piece
3 AC power cord 1 Piece
4 Printing paper 1 Roll
5 Instruction manual 1 Piece
6 Packing list 1 Copy
7 Certificate 1 Copy

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

ASTM D93 Automatic Essence Rapid Equilibrium Closed Flash Point Meter Sample 2ml - 10ml 1
