Pesticide Boiling Point Meter Heating RT ～ 300℃ Seven-Segment Display NY/T1860.19

  • Pesticide Boiling Point Meter Heating RT ～ 300℃ Seven-Segment Display NY/T1860.19
  • Pesticide Boiling Point Meter Heating RT ～ 300℃ Seven-Segment Display NY/T1860.19
Lugar de origem China
Marca Shandong Shengtai Instrument Co.,Ltd
Certificação NY/T1860.19
Número do modelo STNY-106
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano
Detalhes do produto
Faixa de aquecimento TR ~ 300 ℃ Poder inteiro não mais do que 1100W
Poder de aquecimento da fornalha elétrica 1000 W Peso do instrumento 15KG
Tamanho do instrumento 320*290*360 mm Fonte de energia de trabalho AC220V±10% 50Hz
Destacar

Pesticide boiling point meter RT to 300℃

,

Seven-segment display pesticide tester

,

Food testing instrument with NY/T1860.19
Deixe um recado
Descrição de produto

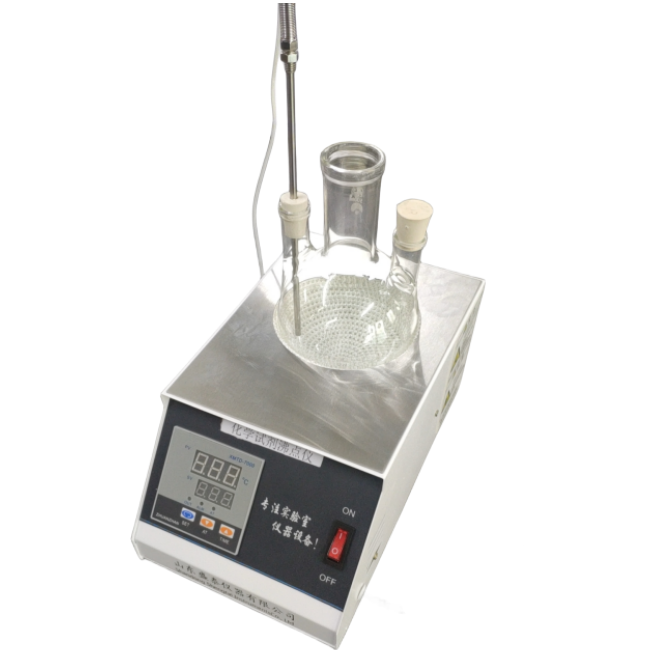

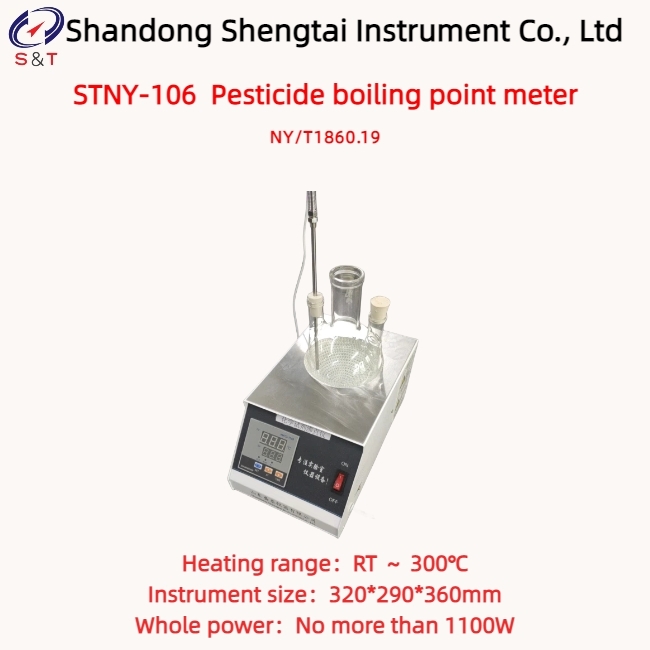

STNY-106 Pesticide boiling point meter

The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.

Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.

Technical parameters:

Working power supply AC220V±10% 50Hz
Electric furnace heating power 1000W
Environment temp ≤35℃
Relative humidity ≤85%
Whole power No more than 1100W
Heating range RT ～ 300℃
Instrument size 320*290*360mm
Instrument weight 15kg
Package size 450*390*420mm
Package weight 18kg

Pesticide Boiling Point Meter Heating RT ～ 300℃ Seven-Segment Display NY/T1860.19 0

Customer provided: atmospheric pressure gauge

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Main engine 1 Set
2 Customized special three necked flask 1 Piece
3 Thermometer 2 Piece
4 Power cord 1 Piece
5 Instructions 1 Piece
6 Packing list 1 Copy
7 Certificate of conformity 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Pesticide Boiling Point Meter Heating RT ～ 300℃ Seven-Segment Display NY/T1860.19 1
