Plant Oil 304 Stainless Steel Sampler 2kg Tallow Sampling Polishing Treatment ISO 5555

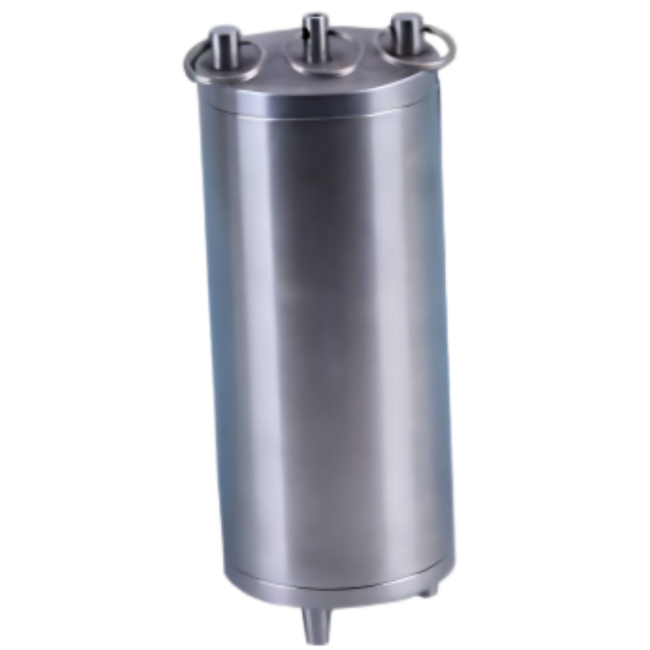

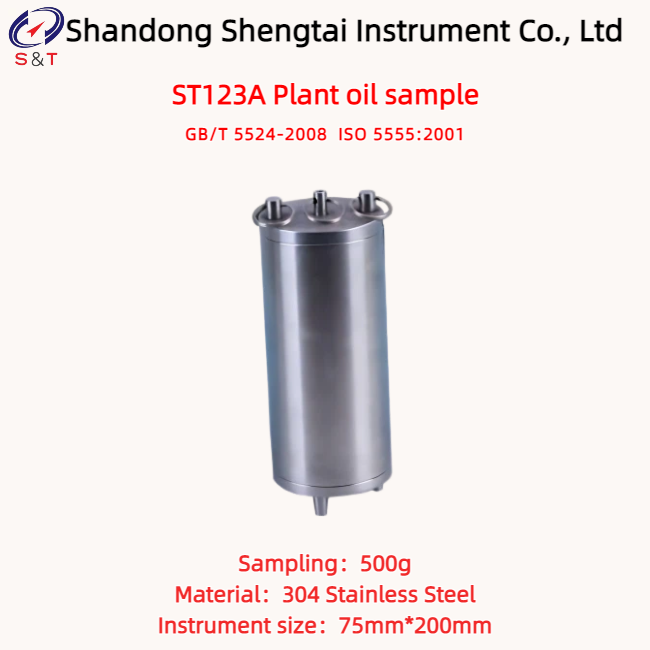

ST123A Plant oil sample

The ST123A oil sampler is designed and manufactured according to GB/T 5524-2008 "Sampling of Animal and Plant Oils and Fats" and ISO 5555:2001. The material of the sampler is all made of 304 stainless steel, and the exterior and interior of the sampler are polished, which not only looks beautiful but also avoids changes in oil composition during the sampling process. Samples can be taken from the top, middle, and bottom. The purpose of sampling is to obtain a sample of oil quantity from a batch (which can have multiple testing batches) that is easy to process. The characteristics of the oil sample should be as close as possible to the oil characteristics it represents. The most suitable material for the sampling device is stainless steel.

Standard: GB/T 5524-2008 ISO 5555:2001

Operation Method

When in use, tie three nylon ropes to the upper cover. When taking samples, tighten one of the cylinder ropes on the edge of the upper cover and slowly place the sampler into the sampling pool. When the sampler is placed at the desired sampling position, tighten the middle valve rope to allow the sample to enter the sampler, then loosen the valve rope and slowly pull up the lifting cylinder to take out the sample.

Hot Sale Molten Metal Oil Bottom Sampler

Brass/Stainless Steel Manual Asphalt Liquid Oil Sampler, Oil Sample Bottle

Technical note

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
