Coal Particles Wear Resistance Tester Roller 50 ± 2r/Min Fully Sealed Design ASTM D3802
| Lugar de origem | China |
|---|---|
| Marca | Shandong Shengtai Instrument Co.,Ltd |
| Certificação | GB/T 12496.6 GB/T 7702.3 ASTM D3802 |
| Número do modelo | ST-108B |
| Quantidade de ordem mínima | 1 |
| Detalhes da embalagem | caixa de madeira |
| Tempo de entrega | 7 a 15 dias úteis |
| Termos de pagamento | T/T |
| Habilidade da fonte | 10.000 conjuntos/ano |
Detalhes do produto
| Velocidade do rolo | 50r/min±2r/min | Precisão de tempo | 1S |
|---|---|---|---|
| Diâmetro da esfera de aço | φ14,3 mm±0,2 mm | Diâmetro interno do rolo | φ80 mm±0,2 mm |
| Potência do motor | 0,55kW | Tensão de entrada | 380/220V |
| Destacar | coal particles wear resistance tester,fully sealed ASTM D3802 tester,50r/min food testing instrument |
||
Descrição de produto

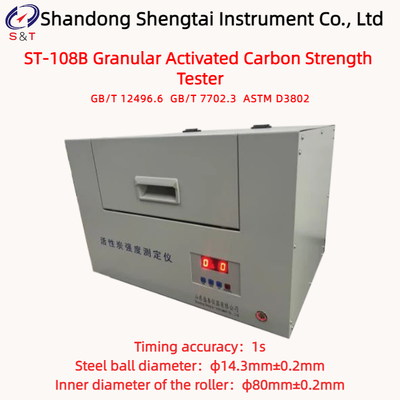

ST-108B Granular Activated Carbon Strength Tester
The ST-108 Granular Activated Carbon Strength Tester is an instrument designed to measure the wear resistance of activated carbon. It is manufactured based on national standards GB/T 12496.6 "Test Methods for Wood-Based Activated Carbon: Determination of Strength", GB/T 7702.3 "Test Methods for Granular Activated Carbon from Coal: Determination of Strength", and ASTM D3802. It can measure various granules (such as spherical, extruded, and flaky), catalysts, and catalyst carriers. It is also suitable for the measurement and analysis of granular materials with similar properties, providing a data analysis basis for improving the proportioning of granular materials.
Standard: GB/T 12496.6 GB/T 7702.3 ASTM D3802
Main technical parameters
| Roller speed | 50r/min±2r/min |
| The instrument features a fully sealed design, with five solid steel balls installed inside the drum | |
| Timing accuracy | 1s |
| Steel ball diameter | φ14.3mm±0.2mm |
| Inner diameter of the roller | φ80mm±0.2mm |
| Roller depth | 126mm±0.5mm |
| Roller wall thickness | 3mm±0.3mm |
| Outer diameter of roller end cover | 120mm±0.5mm |
| Roughness of the inner surface of the drum | Ra1.6∽Ra6.3 |
| Drum length | 126±0.5mm |
| Motor power | 0.55KW |
| Input voltage | 380/220v |
| Preset time | 5min |
| Experiment end | There is a sound prompt |
| Anti-collision protection | The activated carbon strength tester features a roller anti-collision design with a height of 10mm and a width of 12mm, protecting the roller from external impacts. |
| Instrument size | 530*360*370mm |
| Instrument weight | |
| Packaging size | 650*460*480mm |
| Packaging weight | 39.6kg, wooden box |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Quality assurance
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.
----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
Packing List
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Roller | 2 | Piece | |
| 3 | Steel ball | 10 | Piece | |
| 4 | Power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | 10A in the fuse holder |
| 6 | Instruction Manual | 1 | Copy | |
| 7 | Certificate of Conformity and Warranty Card | 1 | Copy |
