Lubricating Grease Water Spray Resistance Tester RT ～ 100℃ 204 Type Bearing ASTM D1264

  • Lubricating Grease Water Spray Resistance Tester RT ～ 100℃ 204 Type Bearing ASTM D1264
  • Lubricating Grease Water Spray Resistance Tester RT ～ 100℃ 204 Type Bearing ASTM D1264
Lugar de origem China
Marca Shandong Shengtai Instrument Co.,Ltd
Certificação SH/T0109-92 ASTMD1264
Número do modelo SH116
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 - 15 dias de trabalho
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Método de aquecimento Haste de aquecimento elétrico Faixa de controle de temperatura do tanque de água RT ~ 100°C, continuamente ajustável
Precisão do controlo da temperatura ± 2 ℃ Precisão da velocidade do rolamento 600 ± 30r/min
Tamanho do instrumento 300×265×425mm Peso do instrumento 46 kg
Destacar

lubricating grease water resistance tester

,

grease tester ASTM D1264 standard

,

bearing grease spray resistance equipment
Deixe um recado
Descrição de produto

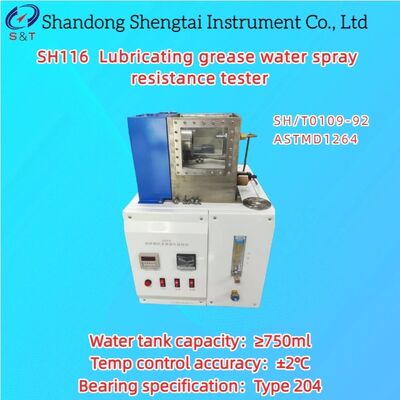

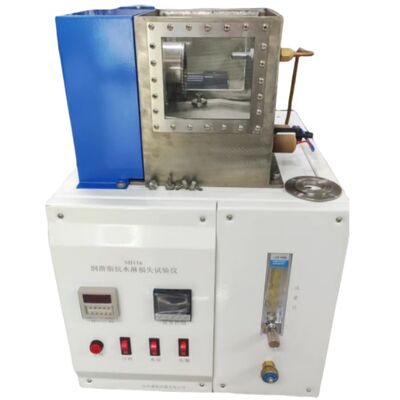

SH116 Lubricating grease water spray resistance tester

The SH116 lubricating grease anti water spray performance tester is used to measure the resistance of lubricating grease to water spray according to the standards of SH/T 0109-2004 and ASTM D1264 "Determination of Lubricating Greases Anti Water Spray Performance". It is a new product used to evaluate the resistance of lubricating grease to water flushing out of bearings under specified experimental conditions at 38℃ and 79℃.

Water spray resistance of lubricating grease: water spray resistance of lubricating grease is the ability of lubricating grease to resist water impact in running bearing, while water spray resistance of lubricating grease is the ability of lubricating grease to resist water spray impact on flat plate

Product model SH116
Product Name Lubricating grease water resistance tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items A new type of product used for evaluating the resistance of lubricating grease to being washed out of bearings by water under specified experimental conditions, tested at 38 ℃ and 79 ℃.
Standards SH/T0109-92 ASTMD1264
Simple technical features or parameters The temperature of the water bath is input to the temperature controller through a PT100 sensor (resistance temperature measurement package) and processed by the internal calculation circuit of the temperature controller to obtain a control signal. This control signal is output to complete heating control

Lubricating Grease Water Spray Resistance Tester RT ～ 100℃ 204 Type Bearing ASTM D1264 0

Performance characteristics

● The water bath temp through the PT100 sensor (resistance temperature measurement package) input to the temperature controller, temperature controller internal operation circuit processing, obtain a control signal, the control signal output, so as to complete the heating control

● The amount of water jet can be directly controlled by circulating pump, large flow valve, nozzle, etc

● Using electric heating rod heating mode, heating speed is fast

● According to the standard to choose ball bearings, the timer can be accurate to 0.1S

Technical parameters:

Heating method electric heating rod
Water tank capacity ≥750ml
Water tank temp control range RT ～ 100℃, continuously adjustable
Temp control accuracy ±2℃
Bearing speed accuracy 600±30r/min
Water flow accuracy 5±0.5ml/s (two valve regulation)
Thermometer 0 ～ 100℃, scale 1℃
Bearing specification Type 204
Power 600W
Instrument size 300×265×425mm
Instrument weight 46kg

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Lubricating Grease Water Spray Resistance Tester RT ～ 100℃ 204 Type Bearing ASTM D1264 1

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Power cord 1 Piece
3 Bearing 2 Piece
4 Instructions 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
