2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541

  • 2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541
  • 2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541
Lugar de origem China
Marca Shansong Shengtai Instrument Co.,Ltd
Certificação SY /T 0541
Número do modelo SH113Y
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Número de amostras do teste 2 Método de refrigeração Refrigeração do compressor
Faixa de medição de temperatura -40 ~ 70℃ Precisão do controlo da temperatura 0,1℃
Tamanho do instrumento 510*485 550mm Peso do instrumento 50,45kg
Impressora Micro impressora Poder inteiro não mais do que 2000W
Destacar

automatic crude oil tester with warranty

,

2 holes oil condensation point tester

,

lube oil testing equipment SY/T0541
Deixe um recado
Descrição de produto

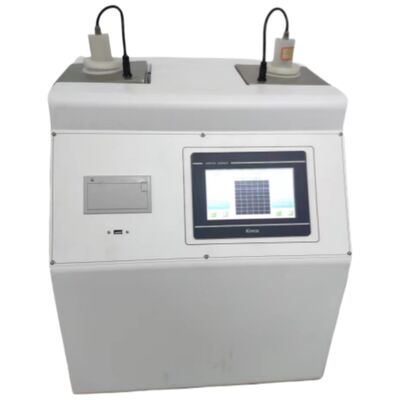

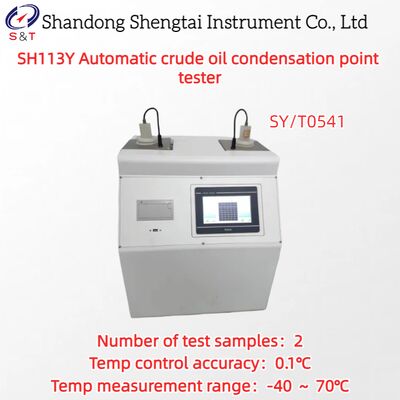

SH113Y Automatic crude oil condensation point tester

SH113Y automatic crude oil condensation point tester is designed and manufactured based on SY/T0541 crude oil condensation point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic and computer technologies. It can automatically test the condensation point of petroleum products. This instrument uses photoelectric detection technology, automatic tilt method of glass tube, and imported compressor refrigeration system to ensure that the required refrigeration depth is reached.

Technical performance

● Large color LCD screen display, full Chinese human-computer dialogue interface, no logo keyboard,

● Simulate and trace the function curve of temperature and test time.

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data sharing: can be accessed into the LIMS system of the group company (optional)

Instrument features

Display method Large color LCD screen
Standard SY /T 0541
Temp measurement range -40 ～ 70℃
Cold bath temp range -40℃ ～ RT
Sample measurement range -25℃ ～ RT
Temp control accuracy 0.1℃
Number of test samples 2
Number of bath holes Dual temp dual bath
Refrigeration method compressor refrigeration
Detection method photoelectric sensor detection
Tilting method glass test tube automatically tilts
Result output USB
Printer Micro printer
Whole power No more than 2000W
Power supply AC220V±10% 50Hz
Instrument size 510*485 550mm
Instrument weight 50.45kg
Package size 580*550*590mm
Package weight 60kg wooden crate

2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be alight changes without prior notice.



Automatic condensation point tester packing list

S/N Name Quantity Unit Remarks
1 Main engine 1 Unit
2 Solidification glass tube 2 Piece
3 condensation point sensor 2 Piece
4 Power line 1 Root
5 Fuse 1 Piece
6 Operating instruction 1 Copy
7 Packing list 1 Copy
8 Certificate warranty card 1 Copy

2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
