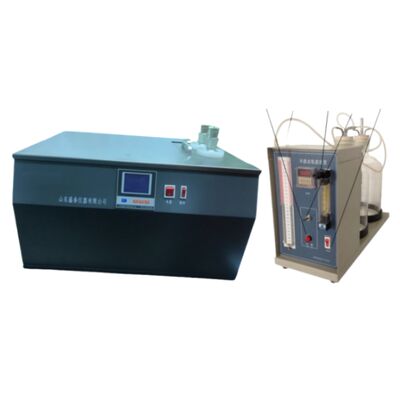

Metal Bath Petroleum Cold Filter Point Tester 2 Holes Single Hole Suction Filter ASTMD 6371

  • Metal Bath Petroleum Cold Filter Point Tester 2 Holes Single Hole Suction Filter ASTMD 6371
  • Metal Bath Petroleum Cold Filter Point Tester 2 Holes Single Hole Suction Filter ASTMD 6371
Lugar de origem China
Marca Shandong Shengtai Instrument Co.,Ltd
Certificação SH/T0248 ASTM D6371
Número do modelo SH113B-L
Quantidade de ordem mínima 1
Detalhes da embalagem caixa de madeira
Tempo de entrega 7 a 15 dias úteis
Termos de pagamento T/T
Habilidade da fonte 10.000 conjuntos/ano

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Método de teste 2 conjuntos Método da saída Visor LCD
Banho frio Banho de metal Faixa de controle de temperatura -70°C ~ temperatura ambiente
Precisão do controlo da temperatura ±0,5℃ Filtro de sucção Orifício único
Poder não mais do que 1500W Temp do ambiente ≤30 ℃
Destacar

metal bath petroleum filter tester

,

cold filter point tester 2 holes

,

lube oil testing equipment ASTM D 6371
Deixe um recado
Descrição de produto

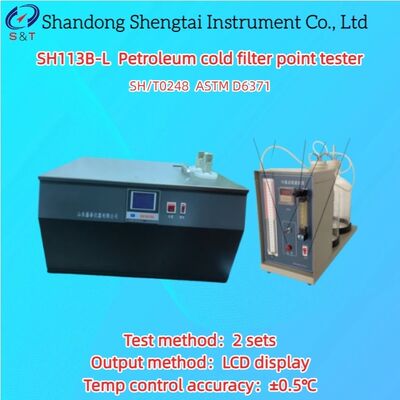

SH113B-L Petroleum cold filter point tester

SH113B-L Petroleum Cold Filtration Point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard SH/T0248, and is suitable for measuring the cold filtration point of petroleum products using the methods specified in the above standards.

Cold filtration point refers to the highest temperature (i.e., the lowest ambient temperature used at the flow point) when oil passes through the filter at less than 20 ml per minute under specified conditions.

Product model SH113B-L
Product Name Cold filter point tester metal bath
Manufacturer Shandong Shengtai Instrument Co., Ltd
Test items Heavy oil, crude oil, dark oil and other petroleum products
Standards SH/T0248 ASTM D6371
Simple technical features or parameters Temp control range: RT ～ -70℃, using compressor refrigeration, two sets of tests can be conducted simultaneously

Metal Bath Petroleum Cold Filter Point Tester 2 Holes Single Hole Suction Filter ASTMD 6371 0

Main technical features

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is small LCD display, with good temperature control stability.

● The main machine is heated in a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly.

● Imported cascade compressor

Main technical parameters

Test method 2 sets
Output method LCD display
Cold bath Metal bath
Temp control range -70℃ ～ RT
Cold bath temp range -70℃ ～ RT
Sample measurement range -55℃ ～ RT
Cold filter point measurement range -55℃ ～ RT
Temp control accuracy ±0.5℃
Refrigeration system Stacked compressor (Dual compressor)
Suction filter Single hole
Environment temp ≤30℃
Relative humidity ≤85%
Power No more than 1500W
Package size 890*530*480mm
Package weight 75kg

Note: The appearance picture, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Metal Bath Petroleum Cold Filter Point Tester 2 Holes Single Hole Suction Filter ASTMD 6371 1

Details of petroleum product cold filter point tester

S/N Name Quantity Unit Remarks
1 Host 1 Unit
2 Cold filter point test tube 2 Piece
3 Cold filter point thermometer 2 Piece
4 Cold filter point siphon 1 Piece
5 Cold filter point filter screen 1 Piece
6 Main parts of cold filter point filter 1 Piece
7 Cold filter point suction filter 1 Set
8 Power cord 1 Root
9 Instruction manual 1 Copy
10 Packing list 1 Copy
11 Certificate warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
