Automatic Silica Gel Cone Penetration Meter Silicone Grease 10 - 50℃ ISO 2137

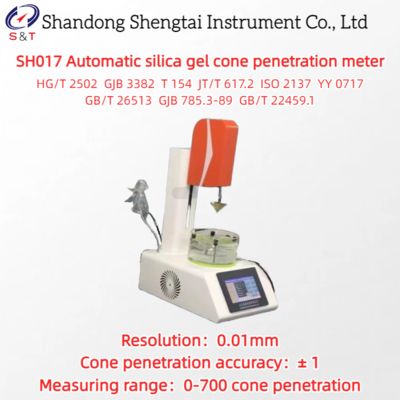

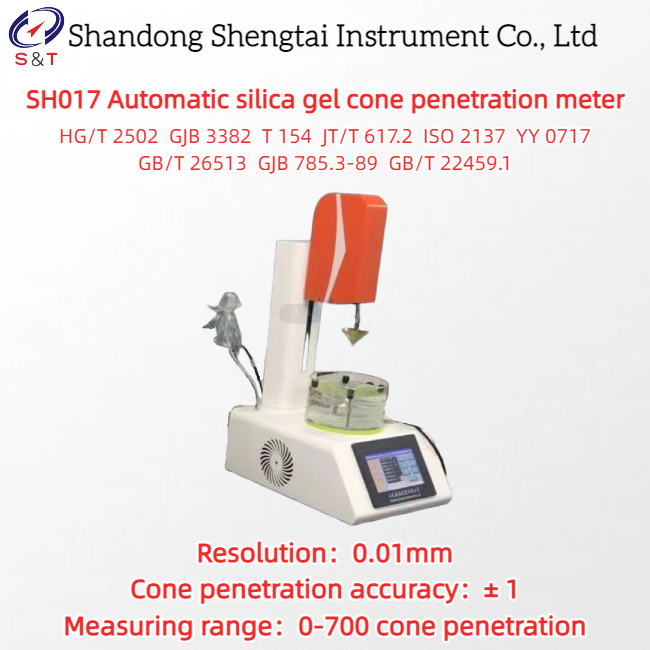

SH017 Automatic silica gel cone penetration meter

Standard: HG/T 2502 GJB 3382 T 154 JT/T 617.2 ISO 2137 YY 0717 GB/T 26513 GJB 785.3-89 GB/T 22459.1

The SH017 automatic silicone cone penetration meter is based on the Chinese chemical industry standard HG/T2502-1993 "5201 Silicone Grease" GJB3382-1998 "Specification for Thermal Conductive Silicone Grease" and the fake breast MZ_ Designed and manufactured in accordance with the requirements specified in the industry standard T 154-2020, it is a special instrument for testing the cone penetration of silicone grease.

Suitable for silicone grease thickened from dimethyl silicone oil through vapor phase silica. It is also suitable for testing various thermal pastes, heat dissipation pastes, heat conduction silicones, heat dissipation silicones, heat conduction silicones, heat conduction silicones, heat conduction muds, potting adhesives, insulation pastes, etc., as well as for the cone penetration of false breasts made of silicone as the main material.

According to the standard requirements, the S-shaped cone penetration value should be 270-330; The F type cone penetration value should be 320-380; The N-type cone penetration value should be 90-120. Cone penetration refers to the use of free falling motion to release a certain mass of cone from the cone penetration meter downward at 25℃, and measure the depth of penetration of the cone into the test article within 5 seconds after the release.

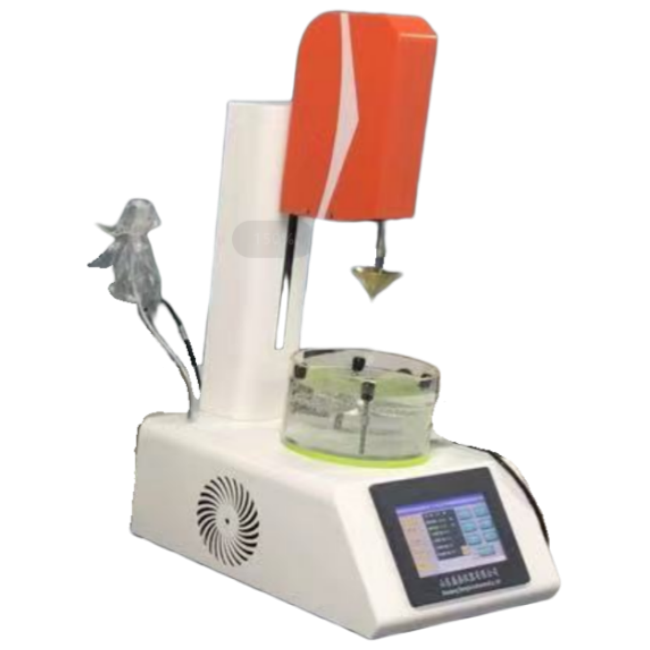

The automatic silicone cone penetrometer is based on a microprocessor and integrates mechanical, optoelectronic, and micro detection technologies. The lifting arm automatically lifts, the touch screen fine adjusts the distance, automatically determines the results, and automatically prints.

Compliance standards

● JT/T 617.2-2018 Rules for Road Transport of Dangerous Goods

● ISO 2137-2007 Petroleum Products and Lubricants

● YY0717-2009 Dental Root Canal Sealing Materials

● GB/T 26513-2011 lipstick

● GJB 785.3-89 Test Methods for Performance of Unvulcanized Rubber Sealants - Penetration and Cone Penetration Tests

● GB/T22459.1-2008 Refractory Slurries - Part 1: Consistency Test Method (Cone Penetration Method)

Technical performance characteristics

● 7-inch TFT color LCD display;

● After upgrading, 199 sets of historical data can be stored for easy query; USB flash drive output function

● Standard micro printer Automatic measurement Automatic printing

● Experimental time can be set arbitrarily

● The needle rod assembly can be adjusted up and down within 0-70mm by adjusting the knob

Main technical parameters and indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Cone selection

● Full size cone mass 102.5g ± 0.05g, matching cone rod mass 47.5g ± 0.05g, HG/T2502 standard vertebral body

● 1/2 size cone mass 22.5g ± 0.025g, matching cone rod mass 15g ± 0.05g, MZ_T 154 standard experimental vertebral body

● 1/4 cone and cone rod total mass 9.38g ± 0.025g, GJB3382-1998 "Thermal Conductive Silicone Resin Specification" for experimental cone

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
