Single Hole Manual Compressor Refrigeration Distillation Range Meter 0 - 400℃ ASTM D86

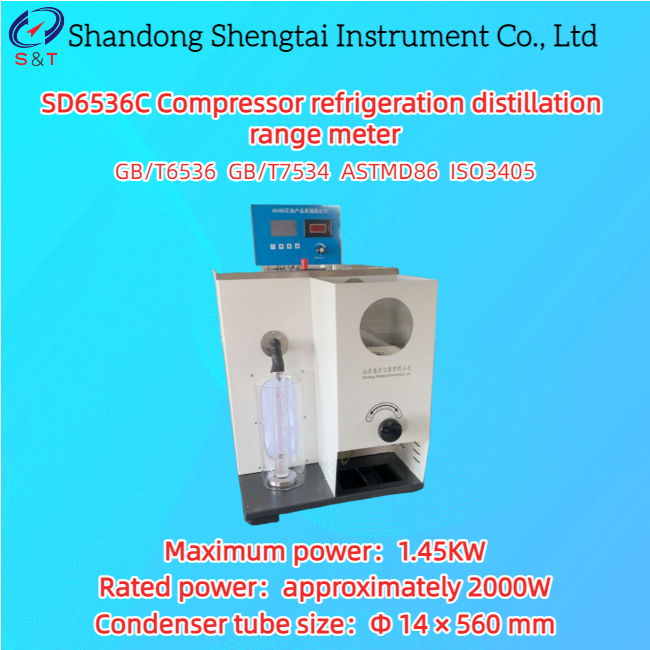

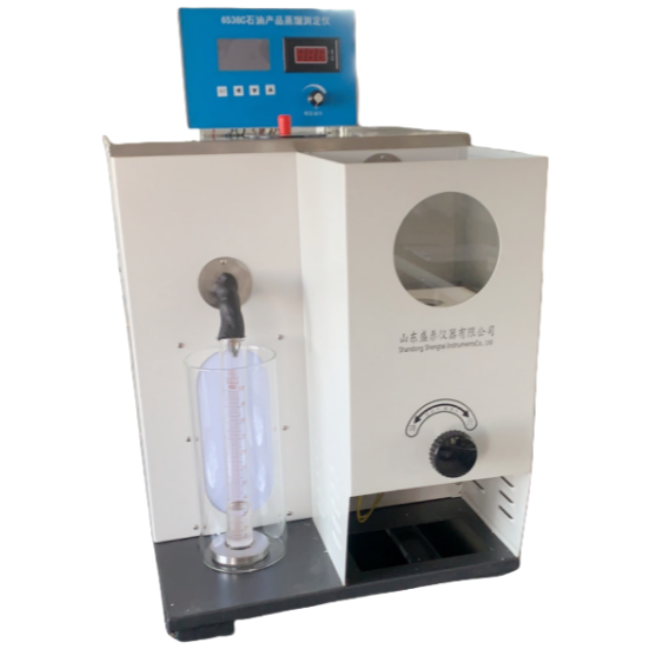

SD6536C Compressor refrigeration distillation range meter

The SD-6536C Petroleum Product Distillation Range Tester is designed and manufactured in accordance with the requirements of the Chinese standards GB/T6536 "Petroleum Product Distillation Determination Method" and GB/T7534-2004 "Industrial Volatile Organic Liquids Boiling Range Determination". It is suitable for use in accordance with GB/T6536 and GB/T7534 standards

Standard: GB/T 6536 GB/T 7534 ASTM D86 ISO 3405

Distillation range refers to the temperature range from the initial boiling point to the final boiling point, which represents the evaporation characteristics of an oil product distilled under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to drip from the condenser during distillation is the initial distillation temperature; The temperature near the end of distillation is the final distillation temperature, and the range between the two temperatures is the boiling range

Suitable for distillation determination of gasoline, aviation gasoline, gasoline injection fuels, solvents with special boiling points, naphtha, diesel, distillate fuels, and similar petroleum products, as well as boiling range of chemical products such as methanol.

Main technical features

● Adopt digital temperature controller, stainless steel heater, new refrigeration compressor and electric stirrer to form a constant temperature bath. The temperature in the bath is uniform, which fully meets the requirements of the test.

● The use of special heating furnace form, to ensure the safety of the test;The heating power can be adjusted continuously to meet the requirements of the test.

● The instrument is complete and easy to use. The repurchased instrument can be used for the distillation test of petroleum products under the condition of low temp.The condensing water tank is made of stainless steel, which can be heated and cooled

● Refrigeration internal circulation, no need for cooling water external circulation

Main technical parameters and indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
