Jet Fuel Oil Distillate Boiling Range Tester Single Hole Silicon Carbide Plate ASTM D86

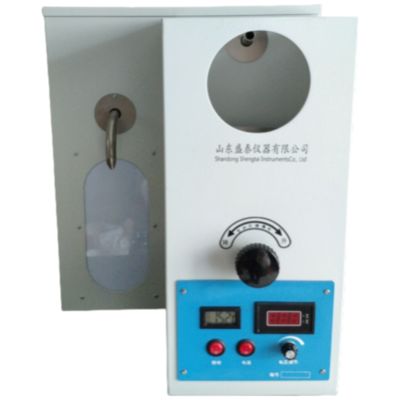

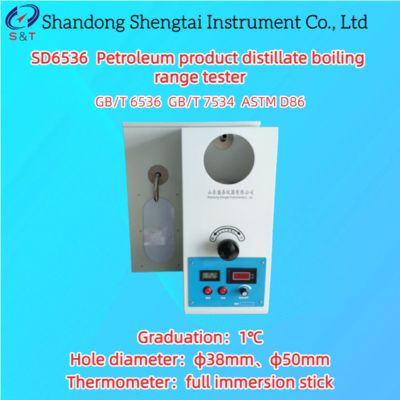

SD6536 Petroleum product distillate boiling range tester

The SD6536 Petroleum Product Distiller is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T6536 "Petroleum Product Distillation Determination Method" GB/T7534-2004 "Industrial Volatile Organic Liquids Boiling Range Determination". It is suitable for the distillation determination of gasoline, aviation gasoline, injection fuel, special boiling point solvents, naphtha, diesel, distillate fuel and similar petroleum products in accordance with GB/T6536 standards, as well as the determination of boiling range for industrial volatile organic liquids and organic solvents for raw materials in accordance with GB/T7534 standards.

Distillation range refers to the temperature range from the initial boiling point to the final boiling point, which represents the evaporation characteristics of an oil product distilled under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to drip from the condenser during distillation is the initial distillation temperature; The temperature near the end of distillation is the final distillation temperature, and the range between the two temperatures is the boiling range

Distillation of petroleum products is an instrument used to determine the boiling range of volatile organic liquids used in industry and organic solvents used in raw materials.

Main technical parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
