Automatic Smoke Point Tester RT ～ 400℃ PT100 Temp Sensor GB/T20795-2006
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
bate-papo: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Exibição da tela de toque | Tela de toque de 7 polegadas | Método de aquecimento | Aquecimento de banho de metal |
|---|---|---|---|
| Faixa de medição de temperatura | TR ~ 400°C | Precisão | 0,1 ℃ |
| Temperatura ambiente | 10~40℃ | Taxa de aquecimento | corresponda com o GB/T20759 |
| Método de armazenamento | Os resultados experimentais podem armazenar 1000 pontos de dados históricos para uma consulta fácil | Resultados Saída | também equipado com função de saída de disco U, saída para terminal de PC para armazenamento de long |
| Destacar | automatic smoke point tester,smoke point tester with PT100 sensor,food testing instrument with GB/T20795-2006 |
||
Descrição de produto

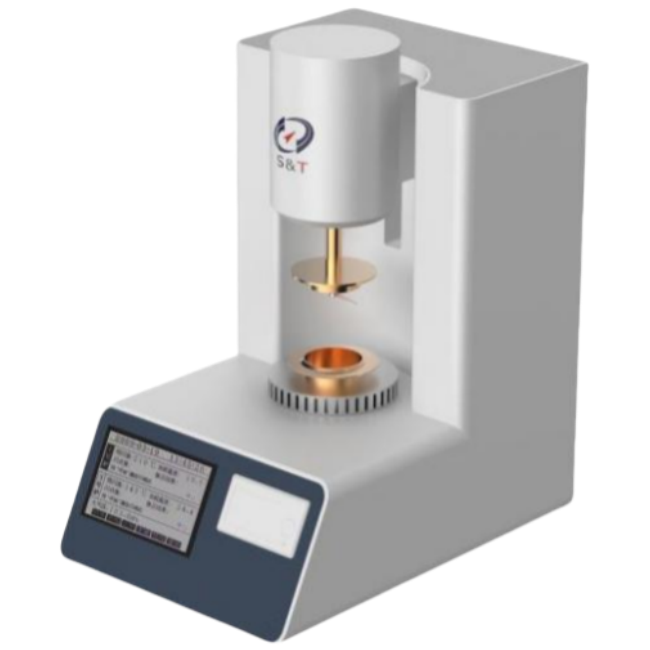

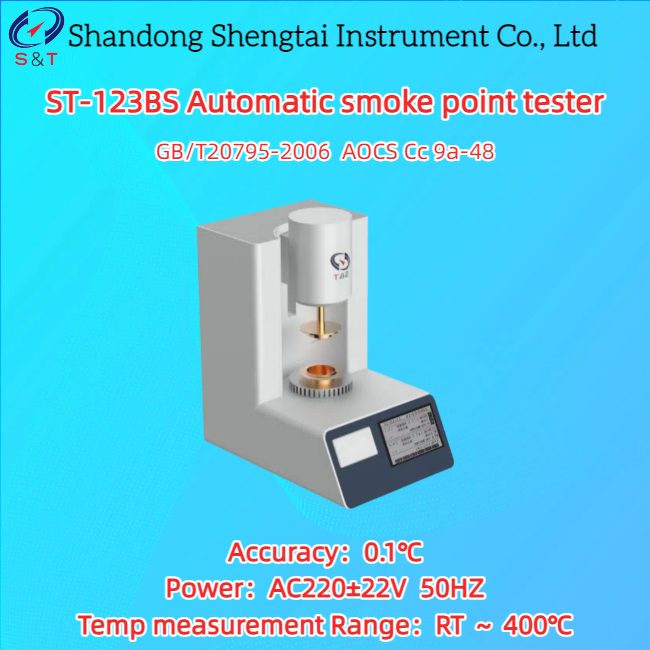

ST-123BS Automatic smoke point tester
ST-123BS Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" and AOCS Cc 9a-48 .This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.
Edible oil smoke point tester vegetable oil smoking point tester
Automatic Determination
Instrument features:
| Touch screen display | 7-inch touch screen display |
| Heating method | metal bath heating |
| Detection method | Camera photoelectric principle |
| Temp sensor | imported PT100 temp sensor |
| Standard micro-printer automatic measurement automatic thermal printing | |
Major technical parameter:
| Power | AC220±22V 50HZ |
| Temp measurement Range | RT ～ 400℃ |
| Accuracy | 0.1℃ |
| Heating rate | correspond with GB/T20759 |
| Storage method | the experimental results can store 1000sets of historical data for easy query |
| Results output | also equipped with U disk output function, output to PC terminal for long-term storage |
| Output format | The resulting U disk output format is CSV or excel. |
| Data extension | laser printer interface, can link HP1108 laser printer (optional). |
| Data protection | with the date password setting function. |
| Standard printing | a standard micro-printer for automatic measurement and automatic thermal printing |
| Remote upgrade | with TCP network transmission function, can be the software remote upgrade late |
| Ambient temp | 10～40℃ |
| Relative humidity | ≤80% |
| Total power consumption | ≤500W |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
