Diesel Total Pollutant Content Tester Capacity 500ml Weighing Method GB/T 33400

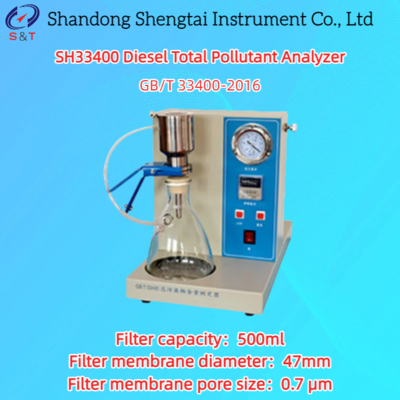

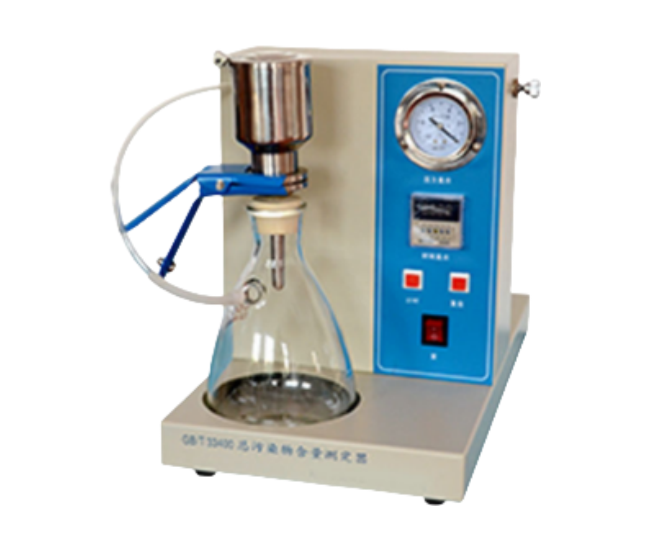

SH33400 Diesel Total Pollutant Analyzer

The SH33400 diesel total pollutant analyzer is designed by our company to comply with the GB/T 33400-2016 standard for the determination of total pollutant content in middle distillates, diesel, and fatty acid methyl esters.

The method for determining the total pollutant content in diesel and pure fatty acid methyl ester (BD100) with a volume fraction of no more than 30% specified in the standard for middle distillate oil and fatty acid methyl ester. It is also used for samples with a viscosity not exceeding 8mm2/s at 20 ℃ or 5mm2/s at 40 ℃, as well as samples with a total pollutant content of 12 mg/kg to 30 mg/kg, and precision is specified; This also applies to samples with total pollutant content outside of this range, whose precision is not specified.

Performance Characteristics

● Filter, large capacity

● The pore size of the filter membrane pad is uniform, protecting the filter membrane from damage

● Equipped with a vacuum pump, the vacuum filtration pressure system is balanced and stable

● Accurate pressure device, reliable control, easy adjustment

Main technical specifications and parameters

● Working power supply: AC220V ± 10% 50Hz

● Vacuum degree: pressure 2KPa ～ 5KPa (pressure gauge corresponds to pressure -0.009MPa ～ -0.096Mpa)

● Filter capacity: 500ml

● Filter membrane diameter: 47mm

● Filter membrane pore size: 0.7 μ m

● Instrument size: 350 * 280 * 420mm

● Weight: 12kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
