Automatic Distillation Tester for Petroleum Products ASTM D86

  • Automatic Distillation Tester for Petroleum Products ASTM D86
  • Automatic Distillation Tester for Petroleum Products ASTM D86
Lugar de origem China
Marca Shandong Shengtai Instruments Co., Ltd
Certificação GB/T6536、ASTM D86、GB/T7534-2004、GB/T 3146-1982、GB/T 18255、GB/T 26984、GB/T 615-2006
Número do modelo SH6536A
Quantidade de ordem mínima 1
Detalhes da embalagem Caixa de Madeira
Tempo de entrega 7-15 dias úteis
Termos de pagamento T/t
Habilidade da fonte 10000 conjuntos/ano

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Intervalo de temperatura Temperatura ambiente ± + 400 °C Precisão de exibição 0,1 ℃
sensor de temperatura do vapor Resistência de platina PT100 importada da Alemanha Intervalo de medição do volume de reciclagem 100 ml
Tamanho do instrumento 800 * 600 * 640 mm Tamanho do empacotamento exterior 880 * 680 * 780mm
Destacar

Automatic petroleum distillation tester

,

ASTM D86 distillation equipment

,

Crude oil testing analyzer
Deixe um recado
Descrição de produto
Automatic Distillation Range Tester For Benzene Products Double tube ASTM D86
Product Specifications
Attribute Value
Temp range Room temp ～ +400 ℃
Display accuracy 0.1 ℃
Steam temperature sensor German imported PT100 platinum resistor
Recycling volume measurement range 0 ～ 100ml
Instrument size 800 * 600 * 640mm
Outer packaging size 880 * 680 * 780mm
Product Description

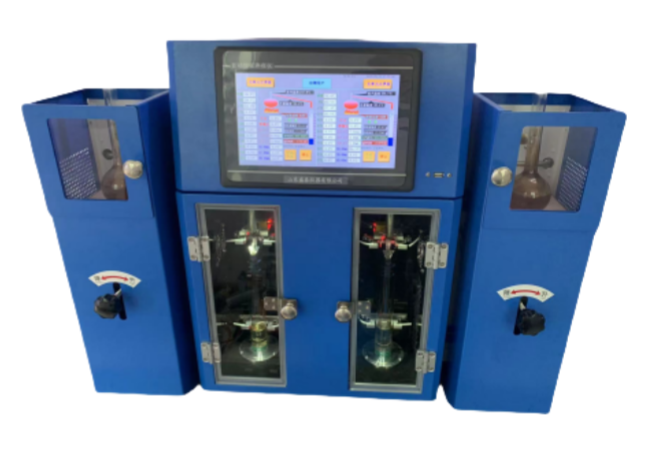

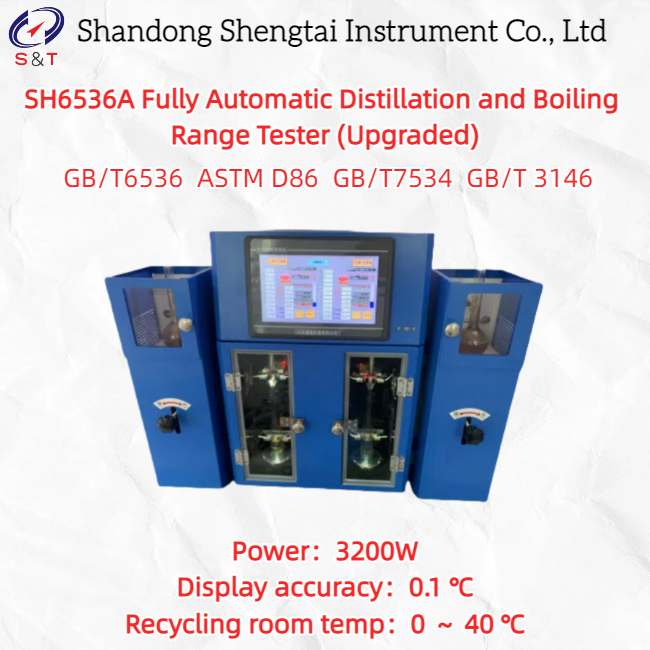

SH6536A Fully Automatic Distillation and Boiling Range Tester (Upgraded)

The SH6536A fully automatic dual tube distillation and boiling range measuring instrument features:

  • Color LCD display with Chinese menu human-machine interface
  • Fully automated measurement process
  • Compliant with multiple national and international standards including GB/T6536, ASTM D86, and GB/T7534-2004
  • Suitable for various organic liquids with stable chemical properties during distillation
  • Embedded computer system with large LCD touch screen
  • Automatic temperature control and data recording
Main Performance Characteristics
  • Industrial computer controlled testing with full touch LCD display
  • Real-time display of temperature, volume data and related curves
  • High-precision step-by-step linear motor and imported photoelectric tracker for liquid level tracking
  • Mechanical cooling system with foreign brand compressor
  • Automatic control of distillation furnace heating (4-5ml/min flow rate)
  • Provides temperature values at all percentage points
  • Real-time animation of experimental process with critical parameters
  • Automatic atmospheric pressure detection and correction
  • Multiple test stopping options available
  • Data storage, query, and printing capabilities
  • USB data export function
Technical Parameters
Temp range Room temp ～ +400 ℃
Display accuracy 0.1 ℃
Steam temperature sensor German imported PT100 platinum resistor
Start heating to initial boiling point time 5 ～ 15 minutes
Distillation rate 2 ～ 10ml/min (adjustable)
Time from 5ml residual to endpoint ≤ 5 minutes
Recycling volume measurement range 0 ～ 100ml
Recovery volume measurement accuracy ± 0.1 ml
Power 3200W
Cooling system compressor cooling
Cold bath temp -5 ～ 60 ℃
Recycling room temp 0 ～ 40 ℃
Instrument size 800 * 600 * 640mm
Outer packaging size 880 * 680 * 780mm
Outer packaging weight 120kg (wooden crate)
Automatic Distillation Tester for Petroleum Products ASTM D86 0
Safety Features
  • Fire extinguishing system with manual nitrogen extinguishing capability
  • Safety temperature setting function with automatic shutdown
  • Automatic detection of critical parameters throughout testing
Standard Accessories
Number Name Quantity Unit Note
1 Host 1 Unit
2 Sensor 1 Piece
3 Distillation flask 2 Piece 125ml or 100ml
4 Measuring cylinder 2 Piece 100ml
5 Heating support plate 2 Set
6 Deflector 2 Set
7 Cleaning rope 1 Root
8 Power line 1 Strip
9 Fuse tube 1 Piece 10A
10 Operation instructions 1 Copy
11 Packing list 1 Copy
12 Certificate of conformity 1 Copy
Automatic Distillation Tester for Petroleum Products ASTM D86 1

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
