Automatic Crystallization Point Cloud Point Analyzer for Diesel Fuel Testing

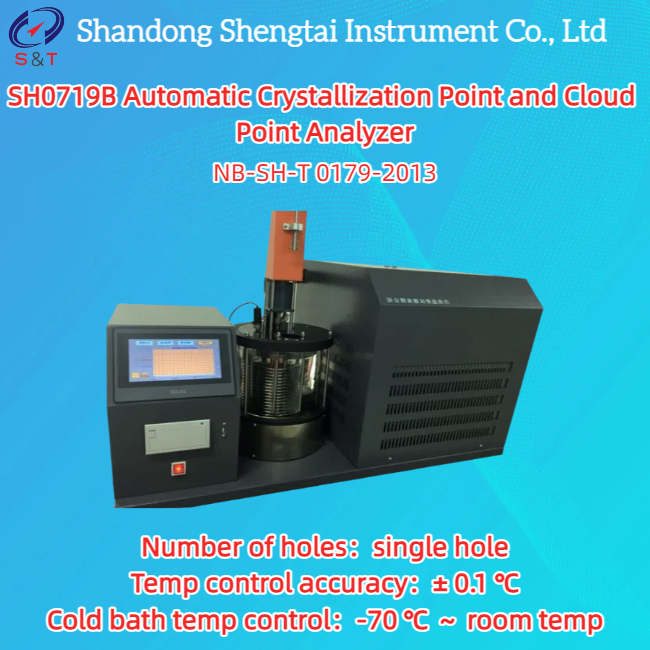

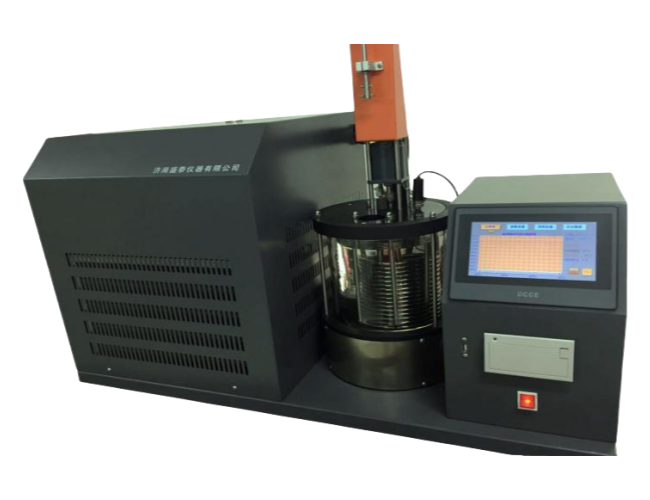

SH0719B Automatic Crystallization Point and Cloud Point Analyzer

The SH0719B automatic crystallization point and cloud point analyzer is designed and manufactured based on the NB-SH-T 0179-2013 method for determining the cloud point and crystallization point of light petroleum products. Suitable for determining the crystallization point and cloud point of light petroleum.

Instrument features: Designed with an embedded system, it automatically detects crystallization points throughout the entire experimental process; Color touch screen; The experimental results can be stored; You can view historical data; The results can be printed on the instrument, mechanically stirred, and the crystallization point experiment results can be exported through a USB drive and stored in a computer for multiple experiments and comparisons. The transparent vacuum Dewar flask can observe and record the cloud point temperature of light petroleum.

Technical Parameter

● Working power supply: AC220V ± 10% 50Hz

● Working cold bath: double-layer vacuum glass bath

● Cold bath temperature control: -70 ℃ ～ room temperature

● Temperature control accuracy: ± 0.1 ℃

● Number of holes: single hole

● Test tube size: Double walled glass test tube

● Observation rack: integrated single hole

● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min

● Refrigeration system: compressor refrigeration

● Sample mixing: synchronous reduction motor, 60 times/minute

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: around 1500W

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
