Verificador Reid Method da pressão de vapor da gasolina dos instrumentos SH8017 dos testes do petróleo de ASTM D323
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
bate-papo: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xModelo | SH8017 | poder do nput | ± 5% 50Hz da C.A. 220V |
---|---|---|---|
O uso da variação da temperatura do banho maria | temperatura ambiente ~100℃ | Precisão de controle da temperatura | ºC do ± 0,1 |
Poder de aquecimento | 1.6kw | Calibre de pressão | Calibre 0 da mão redonda ~ 200KPa |
Temperatura ambiental | -10℃~35℃ | Humidade relativa | <85> |
Realçar | Verificador 220V da pressão de vapor da gasolina,Instrumentos de teste do petróleo de ASTM D323,Verificador de Reid Method Gasoline Vapor Pressure |

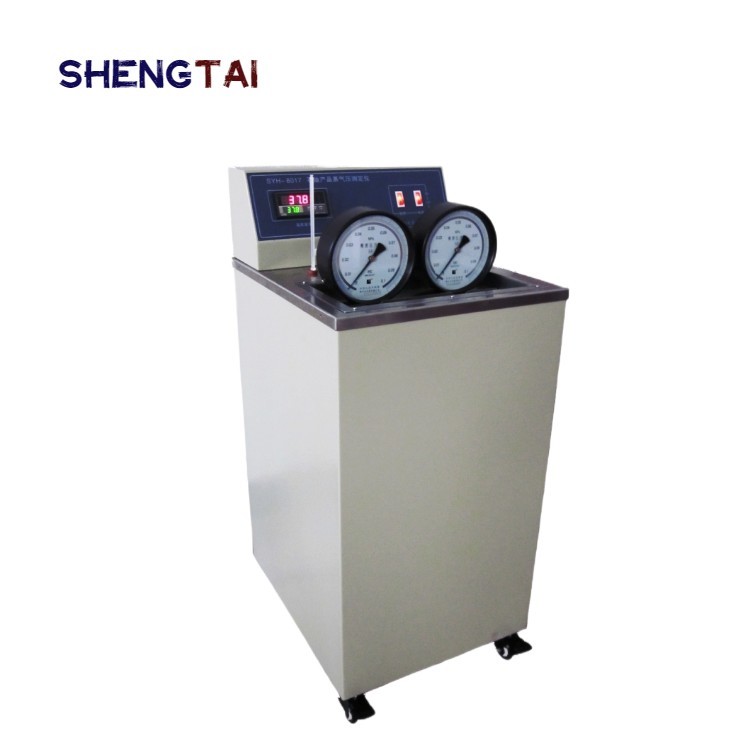

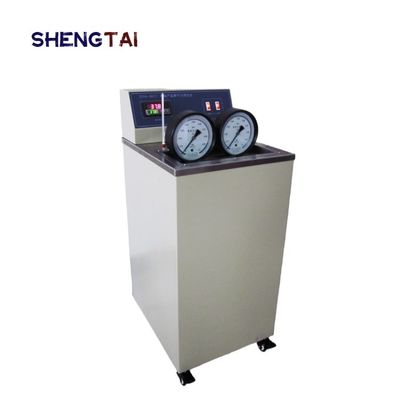

SH8017 Steam pressure tester for petroleum products (Reid method)
Purpose and scope of application
SH8017 steam pressure tester for petroleum products is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T8017 "steam pressure measurement method for petroleum products (Reid method)". It is suitable for measuring the steam pressure of gasoline, volatile crude oil and other volatile petroleum products.
Vapor Pressure Tester for Petroleum Products (Reid method)
ASTM D323 Petroleum Products Vapor Pressure Tester (Reid Method)
vapor pressure tester for petroleum products, Reid Vapor Pressure Testing machine
Petroleum Products Saturated Vapor Pressure Tester (Reid Method)
Reid Method Manual Type Petroleum Product Vapor Pressure Tester
Product model | SH8017 |
Product Name | Petroleum products Vapor pressure tester |
Manufacturer | Shandong Shengtai Instrument Co., Ltd |
Testing items | Suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products |
Compliant with standards | GB/T8017 Petroleum Products Determination of Vapor pressure (Reid Method) |
Simple technical features or parameters | Temperature control range: room temperature -100 degrees, water bath temperature control accuracy: ± 0.1 ℃; |
II. Main technical indexes and parameters
Description | Parameters |
Input power | AC 220V ± 5% 50Hz |
The use of water bath temperature range | room temperature ~100℃; |
Temperature control accuracy | ± 0.1 ºC |
Heating power | 1.6KW |
Pressure gauge | Round Hand gauge 0 ~ 200KPa |
pressure gauge accuracy | + 0.4%; |
Ambient temperature | -10℃~35℃. |
Relative humidity | <85% RH |
Power consumption of the whole machine: no more than 1700W | |
Package size: 48 * 45 * 75cm weight 50kg |
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Vapor pressure meter | set | 1 | |
2 | Steam bomb | set | 2 | |
3 | Pressure gauge | piece | 2 | |
4 | Mercury thermometer | piece | 1 | |
5 | Instruction | copy | 1 | |
6 | Packing list | copy | 1 | |
7 | Certificate warranty card | copy | 1 |
