Automatic Liquid Chemical Self Ignition Point Meter ASTM E659

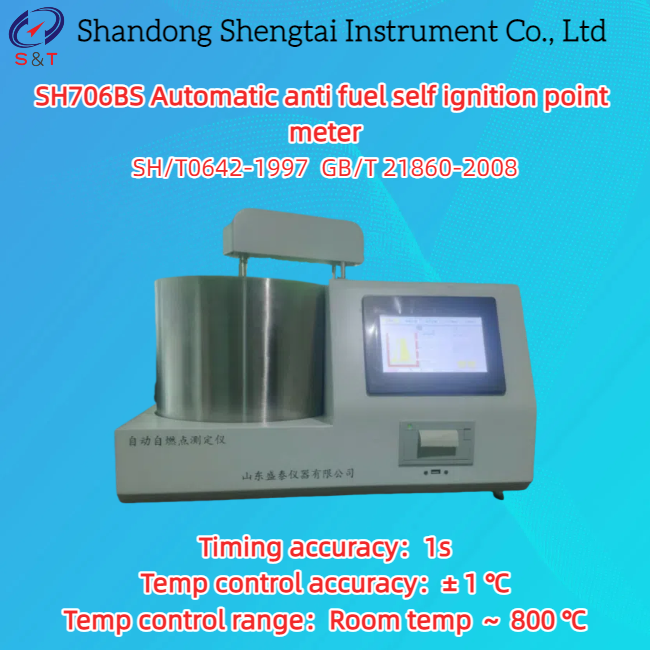

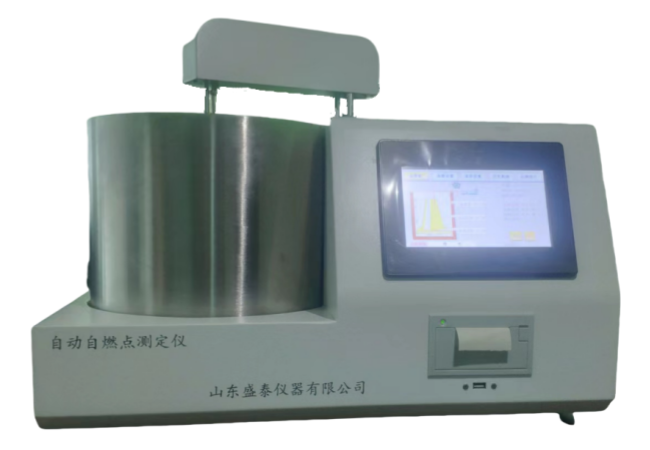

SH706BS Automatic anti fuel self ignition point meter

The SH706BS fully automatic self ignition point meter is designed and manufactured according to the requirements of the standard SH/T0642-1997 "Determination of self ignition point of liquid petroleum and petrochemical products", and also complies with GB/T 21860-2008 "Test method for self ignition temperature of liquid chemicals". This instrument adopts advanced microcomputer technology and a color display with a touch screen. It uses advanced temperature control methods to automatically determine the self ignition point of oil products. It has the functions of automatic constant temperature timing, automatic sampling, automatic detection of self ignition point, and automatic printing of results after reaching the preset self ignition point

Technical Parameter

● Automatic ventilation device to ensure sufficient oxygen in the furnace and facilitate the collection of spontaneous combustion points

● Automatic sampling device, when the temperature reaches the required level, automatically drops 100 μ L of sample into the flask

● Inject sample volume: The standard specified volume can be entered on the touch screen or set by oneself,

● Applicable standards: SH/T0642-1997, GB/T 21860-2008

● Display mode: LCD color large screen display, touch screen operation

● Adopting three-point temperature measurement: bottom center, side middle, and upper

● Temperature control range: Room temperature ～ 800 ℃

● Temperature control accuracy: ± 1 ℃

● Timing accuracy: 1S

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Power supply: AC 220V ± 22V 50Hz ± 2.5Hz

● Power: ＜ 1500W

● Environmental temperature: 5 ℃ ～ 35 ℃

● Environmental humidity: ≤ 85%

● Repeatability: ≤ 10 ℃

● Reproducibility: ≤ 20

● Instrument size: 450 * 380 * 550mm

● Instrument weight: 35kg

● Packaging size: 520 * 450 * 620mm

● Packaging weight: 43kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
